White NN200 EP200 3 Ply Rubber Conveyor Belts

White NN200 EP200 3 Ply Rubber Conveyor Belts

The white rubber conveyor belt is a rubber, fiber, metal composite product, or a composite product of plastic and fabric used in the belt conveyor belt to carry and transport materials. Conveyor belts are widely used in cement, coking, metallurgy, chemical, steel and other industries where the transportation distance is short and the transportation volume is small.

1. Product introduction

White rubber conveyor belt (including high-strength nylon conveyor belt) products comply with the GB7984-2001 standard.

Covering layer: tensile strength not less than 15Mpa, elongation at break= The degree is not less than 350%, the abrasion amount is less than or equal to 200mm3, the average value of the interlayer adhesion strength of the longitudinal sample is not less than 3.2N/mm between the cloth layers, and the thickness between the covering rubber and the cloth layer is not less than 2.1 N/mm. The length ratio is not less than 10%, and the longitudinal reference force elongation of the full thickness is not more than 1.5%
Nylon (NN) and polyester (EP) conveyor belts:
Covering layer: the tensile strength is not less than 15Mpa, the elongation at break is not less than 350%, the wear amount is less than or equal to 200mm3. The longitudinal elongation at break of the full thickness of less than 3.2 N/mm is not less than 10%, and the longitudinal reference force elongation of the full thickness is not more than 4%.

2. Specifications

1) Core material: CC-56, NN100, NN150, NN200, NN300, NN400
2) Bandwidth: 100mm-2200mm

<

White NN200 Rubber Conveyor Belts

NN200 White Rubber Conveyor Belts

NN200 White Rubber Conveyor Belt

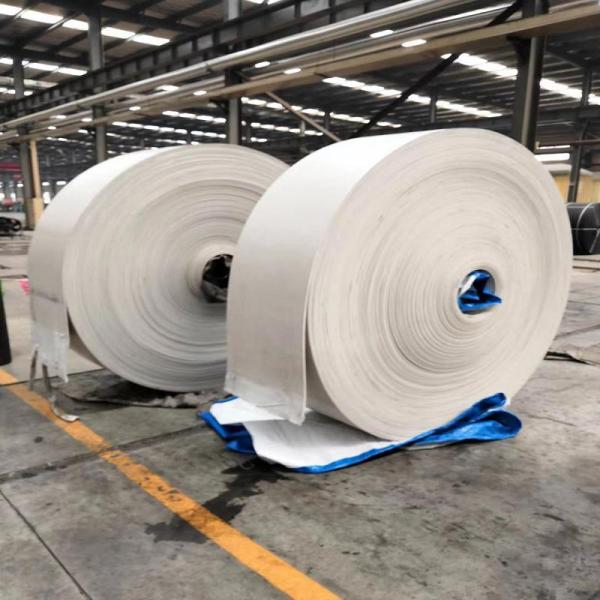

White NN200 EP200 3 Ply Rubber Conveyor Belts Images
